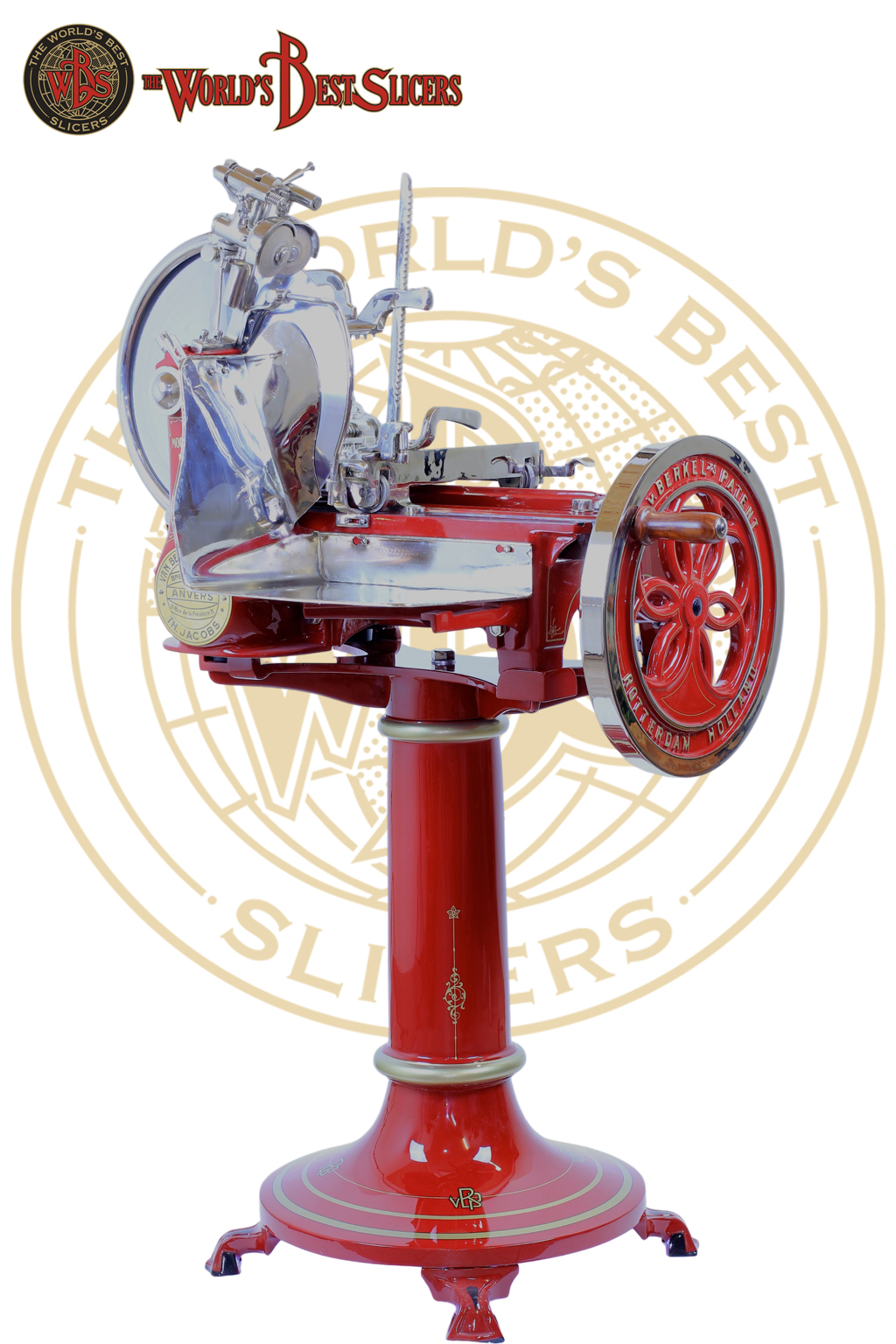

Berkel Europe Model L Red Slicer: History, Specs & Restoration

The Berkel Model L Red flywheel slicer was manufactured between 1907 and 1916. Distributed initially in Italy by Bach in Milan and subsequently across South America through Berkel Argentina, the Model L is a monumental piece of early industrial design.

Drawing structural inspiration from the earlier Model D, the Model L is world-renowned among high-end collectors for its unmatched cutting accuracy. When meticulously restored, this centennial machine achieves an astonishing slice fineness down to 0.2 mm.

Technical Features & Mechanical Innovations

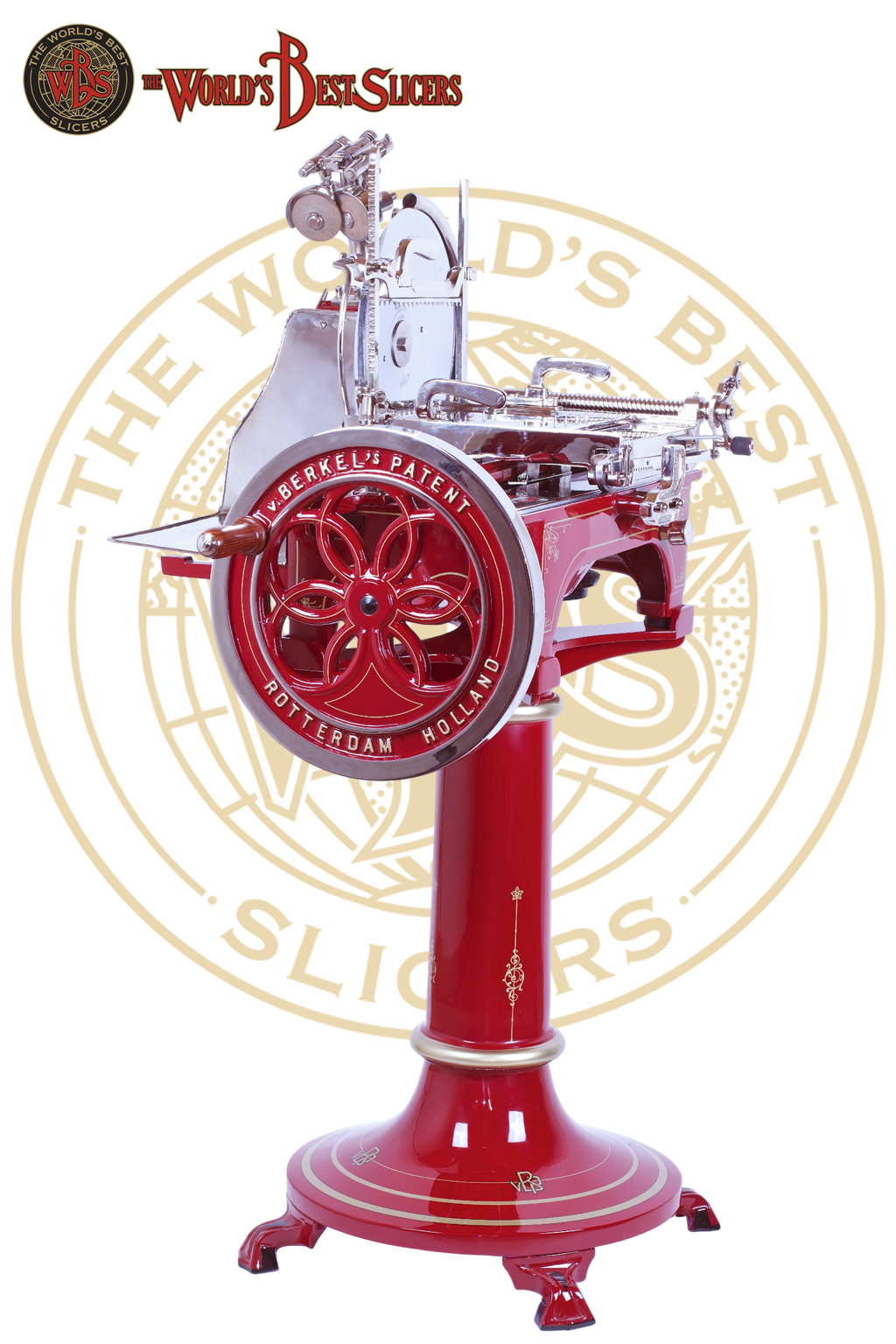

• Floral Flywheel & Counterweight: Driven by an iconic floral flywheel with intersecting concentric circles. Late-production units incorporated an internal counterweight within the flywheel, greatly enhancing overall movement fluidity.

• Bakelite & Metal Wheel Carriage: Powered by twin connecting rods hidden beneath the body, driving the carriage via four metal wheels sliding on black bakelite guides cast directly into the casing.

• Dual-Rack Clamping Arm: The product press (clamping arm) moves smoothly between two opposing racks to secure meat cuts firmly in place.

• 15-Position Thickness Regulator: Features a graduated, 15-position numbered rod sliding through a slot on the right side of the carriage, linked via a small lever to the lead screw mechanism.

• Visible Sharpener Assembly: Top-mounted sharpening unit composed of exposed, nickel-plated components without protective covers, typical of early 20th-century Berkel engineering.

• Distinctive Branding Details: Includes a exposed comb on the meat table and a black top-plate accented by a fine gold square decal. Opposite the flywheel, an abbreviated red, green, and white VBP (Van Berkel's Patent) logo decal is applied.

• Finish & Plating: Finished in classic Berkel Red (also available historically in Ivory and Black) with traditional nickel-plated metal components.

Technical Specifications & Dimensions

• Production Period: 1907 – 1916

• Initial Distribution: Bach & Co. (Milan, Italy) / Berkel Argentina

• Blade Diameter: 350 mm

• Cutting Precision: Adjustable down to 0.2 mm

• Slice Thickness Regulator: 15 positions (graduated rod)

• Metal Plating: Traditional Nickel Plating

• Net Weight: 101 kg

Dimensions & Footprint

• Overall Dimensions: 835 mm (L) x 660 mm (W) x 630 mm (H)

• Base Footprint Required: 490 mm (Front) x 310 mm (Rear)

The Berkel Model L Pedestal & Art Nouveau Decals

While often placed on countertops in commercial settings, the original Berkel pedestal was offered as a signature accessory.

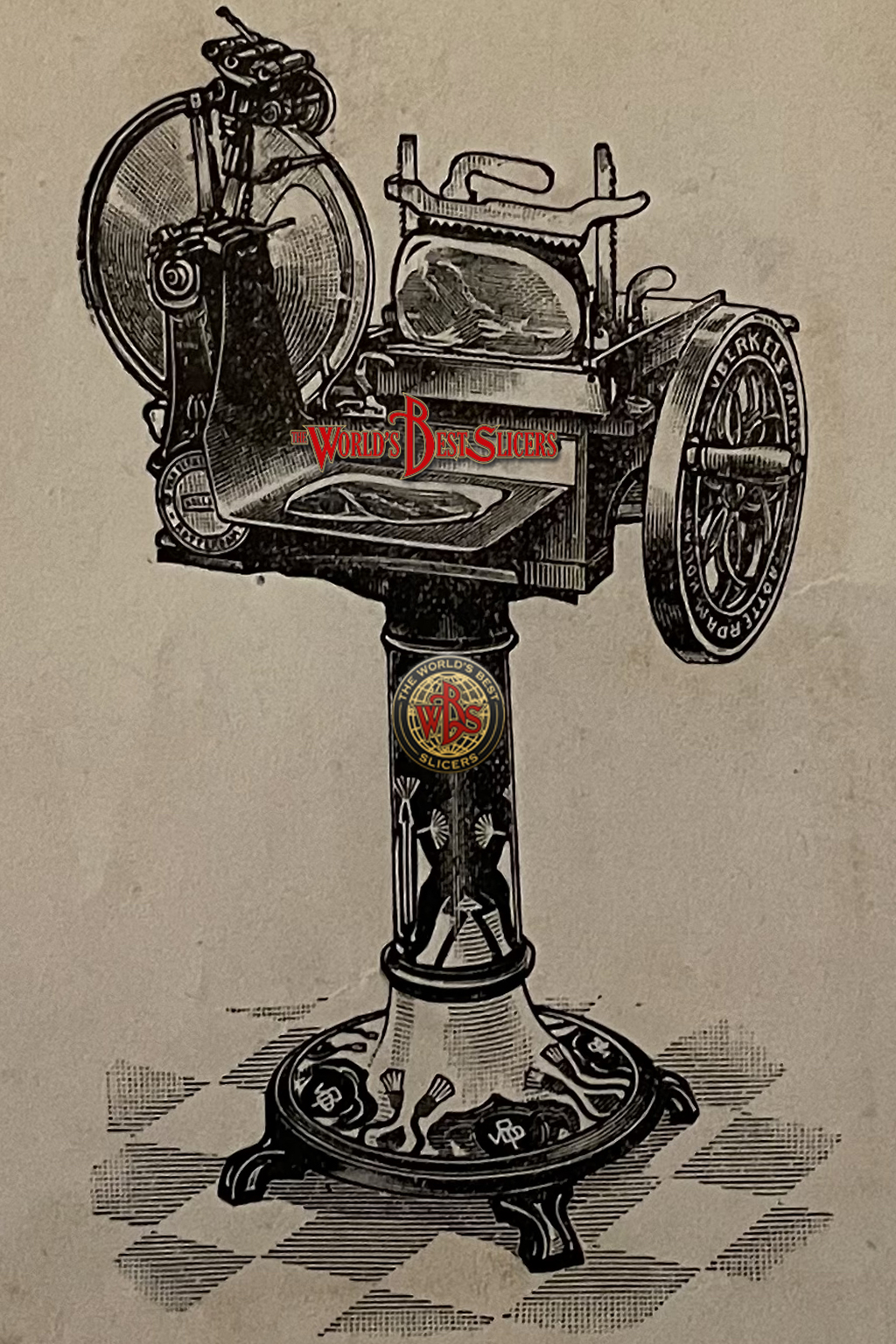

Early Model L pedestals were decorated with elaborate Art Nouveau floral decals depicting intricate leaves and flowers. Later versions adopted a sleeker aesthetic featuring concentric circles with the VBP monogram at the center and stylized stem-flower decals along the lower tubular column.

Expert Restoration Process by "The World's Best Slicers"

Every Berkel Model L Red restored in the laboratories of The World's Best Slicers undergoes an uncompromising, museum-grade conservation process:

1. Mechanical Conservation & Recovery

• Conservation First: Worn or damaged mechanical parts are painstakingly repaired and recovered rather than replaced whenever possible.

• Precision Machining: Components are resurfaced using material deposition welding followed by custom turning or milling to restore exact original factory dimensions and 0.2 mm slicing accuracy.

• Authentic Replacement Parts: Missing components are replaced exclusively using period-correct original spare parts sourced from historical facilities or donor machines.

2. Surface Preparation & Eco-Friendly Painting

• Cryo-Stripping: Non-abrasive cryogenic paint removal strips away legacy coatings while protecting the structural integrity of the century-old cast iron.

• Eco-Compliant Paints: Repainted using non-toxic, eco-compliant modern coatings precisely color-matched to historical Berkel Red shade formulas.

3. Traditional Decals & Pedestals

• Authentic Copal Decals: Artwork, Art Nouveau motifs, and VBP logos are applied strictly using traditional copal paint decals matching period color tones. We never use vinyl stickers, airbrushing, or unauthorized fantasy artwork.

• Authentic Pedestals: Supplied strictly with original period pedestals, avoiding non-historical reproductions.

Authenticity & Guarantee

Every restored Berkel Model L Red is delivered complete with an Official Certificate of Originality and Guarantee, certifying its historical accuracy, mechanical precision, and long-term investment value.
